Does a 3/4 Inch Globe Valve Suit Precision Flow Control

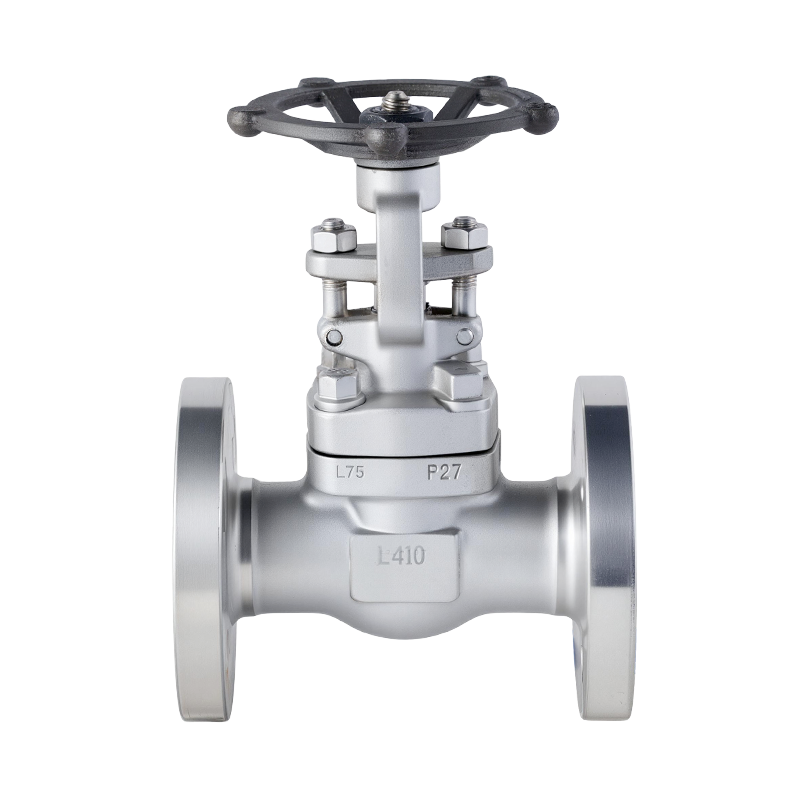

Small piping does not always mean simple flow requirements. Instrument branches, auxiliary steam lines, process skids, and compact hydraulic systems may need controlled fluid movement within a limited installation space. A 3/4 inch globe valve can provide useful flow adjustment in these applications because its disc moves linearly against the seat. This movement creates a gradually changing flow passage rather than relying on a simple quarter-turn opening.

Why Does the Small Size Matter?

Valve size has an impact on the flow area that is available and the amount of fluid that can move through the body. A 3/4 inch connection can be useful, for flow lines that have a demand. In these cases using a valve would offer more capacity than the process actually needs.

• Compact installation: Smaller body dimensions suit auxiliary piping and space-limited equipment.
• Controlled disc travel: Linear stem movement provides gradual changes in the opening between disc and seat.
• Lower flow capacity: The smaller passage can match branches that do not require large fluid volumes.
• Convenient manual operation: Handwheel operation allows operators to make incremental adjustments.

Globe valves are widely associated with throttling because disc position directly influences the available flow area. Technical references also identify globe valves as suitable for regulating applications, although their internal flow path creates greater pressure loss than straight-through valve designs.

Can a 3/4 Inch Globe Valve Provide Fine Adjustment?

Precision does not come simply from the 3/4 inch connection size. Disc profile, seat geometry, stem travel, pressure differential, and required flow range all influence the actual control response.

Small changes in disc position can modify the annular opening between the disc and seat. This characteristic allows operators to regulate flow progressively rather than moving directly between fully open and fully closed positions.

• Shorter flow paths within the intended operating range can make adjustment easier to manage.
• A suitable disc and seat combination can provide a more predictable relationship between stem position and flow.
• Correct valve sizing helps prevent operation at an unsuitable near-closed position.

What About Pressure Drop?

Precision flow control comes with a trade-off. Unlike a full-bore ball valve, a conventional globe valve redirects fluid through its internal body passage. This produces additional resistance and pressure loss, even with the valve fully open.

Such pressure loss is not automatically a disadvantage. It can provide useful control authority in a regulating application. Problems arise when the available pressure margin is too small or the valve is expected to provide high flow with very little resistance.

Pressure Drop Deserves Attention

• Low-flow branch: A 3/4 inch globe valve may provide an appropriate balance between capacity and controllability.
• High differential pressure: Trim design becomes increasingly important as throttling severity rises.
• Near-closed operation: Excessive restriction can create high local velocity and increase the risk of flow-related damage.

Where Can 3/4 Inch Globe Valves Work Well?

Compact process equipment often contains numerous branch connections where full pipeline capacity is unnecessary. A 3/4 inch globe valve can be useful for regulating these smaller streams, provided the required flow rate and pressure conditions match its capacity.

• Instrumentation and auxiliary process lines
• Small steam branches
• Heating and cooling circuits
• Hydraulic equipment with moderate flow requirements
• Bypass and pressure-control branches

Globe valves are available across a broad size range, including NPS 1/2 and NPS 3/4 configurations, which makes small-bore designs relevant to compact control applications.

Does Valve Pattern Affect Control?

Not every globe valve uses exactly the same internal geometry. Tee-pattern, angle-pattern, and Y-pattern bodies provide different flow paths and pressure-loss characteristics. A conventional tee-pattern body creates stronger flow-direction changes, while Y-pattern and angle designs can reduce some internal resistance.

Such differences become relevant in a 3/4 inch application because the available flow area is already limited. Body configuration, connection type, trim geometry, and pressure class should therefore be considered together rather than judging the valve purely by nominal size.

Is 3/4 Inch the Right Size for Precision Control?

Nominal size alone cannot confirm whether a valve will provide stable control. Actual flow requirements should be compared with the valve's rated capacity and the expected pressure differential.

• Check required flow rate: Confirm that the valve can pass the intended operating range.
• Review differential pressure: High pressure differences may require specialized trim.
• Consider media: Temperature, viscosity, steam quality, and corrosive properties affect valve behavior.
• Compare flow coefficient: Cv or equivalent capacity data gives a more useful picture than nominal pipe size alone.

A 3/4 inch globe valve can suit precision flow control across compact, lower-flow piping applications, particularly where gradual adjustment matters more than unrestricted flow. Its linear disc movement supports throttling, while the internal flow path naturally creates pressure loss that should be included in system calculations.

Proper sizing remains essential. Matching the valve's Cv, trim, pressure class, temperature range, and body pattern with the actual process conditions provides a clearer path toward stable flow regulation than relying on the 3/4 inch dimension alone.
